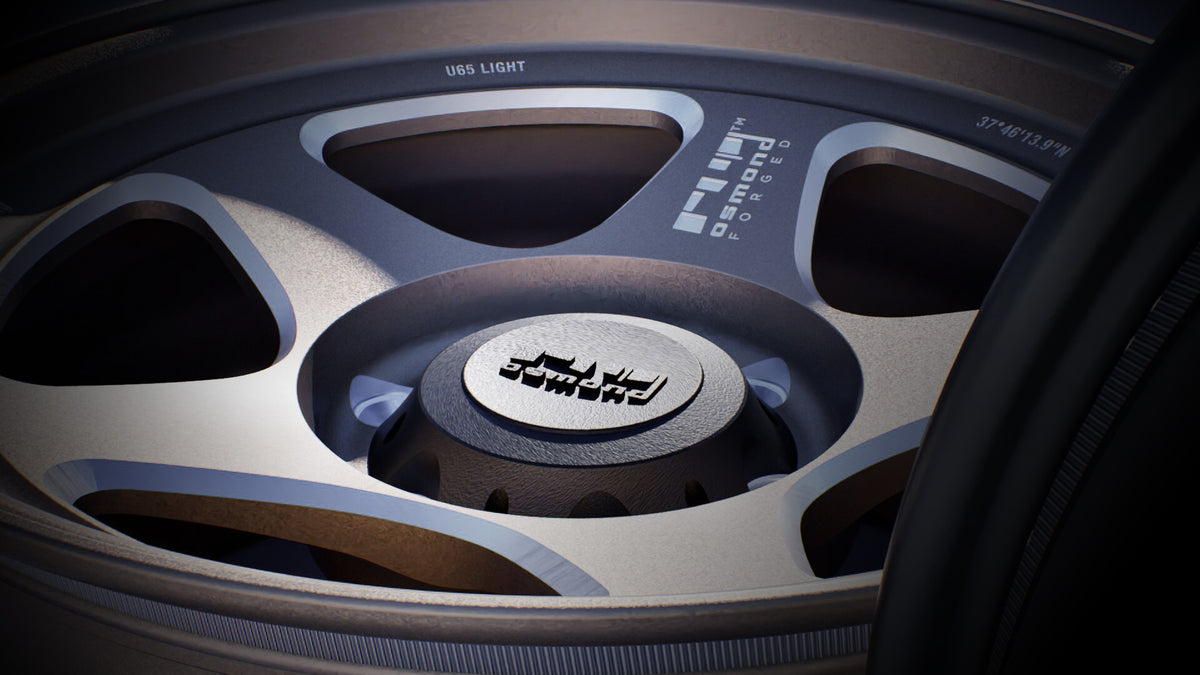

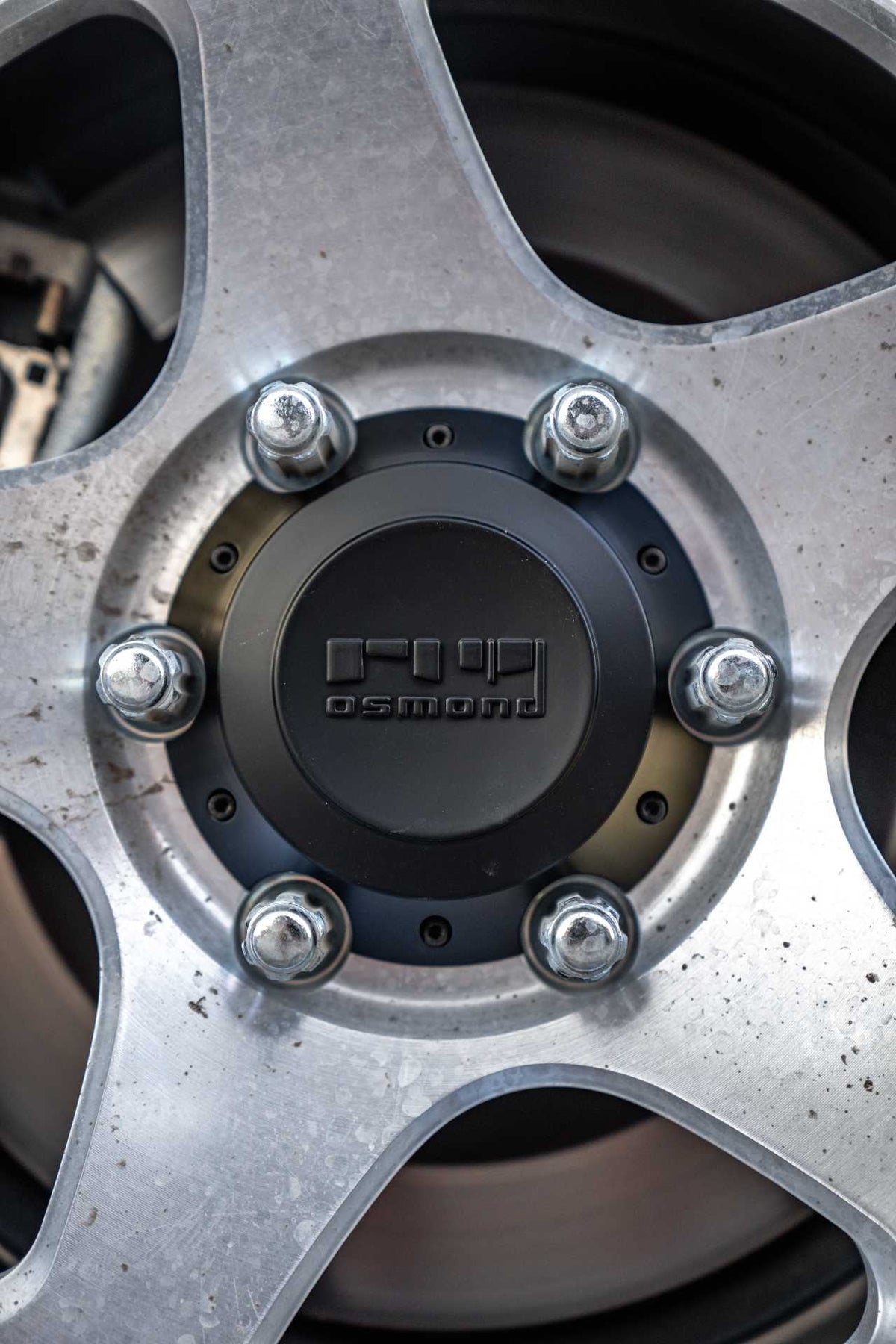

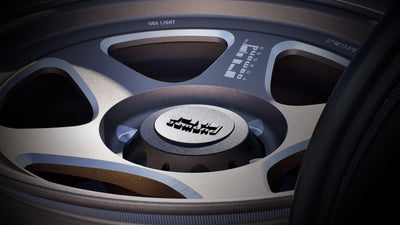

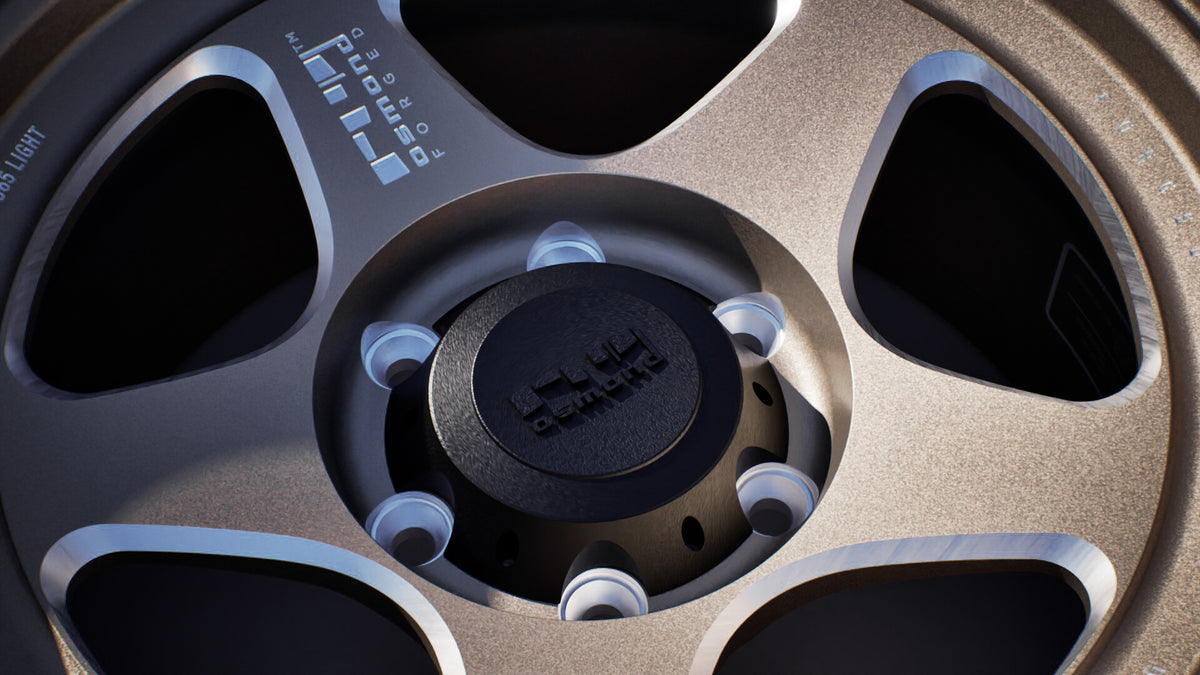

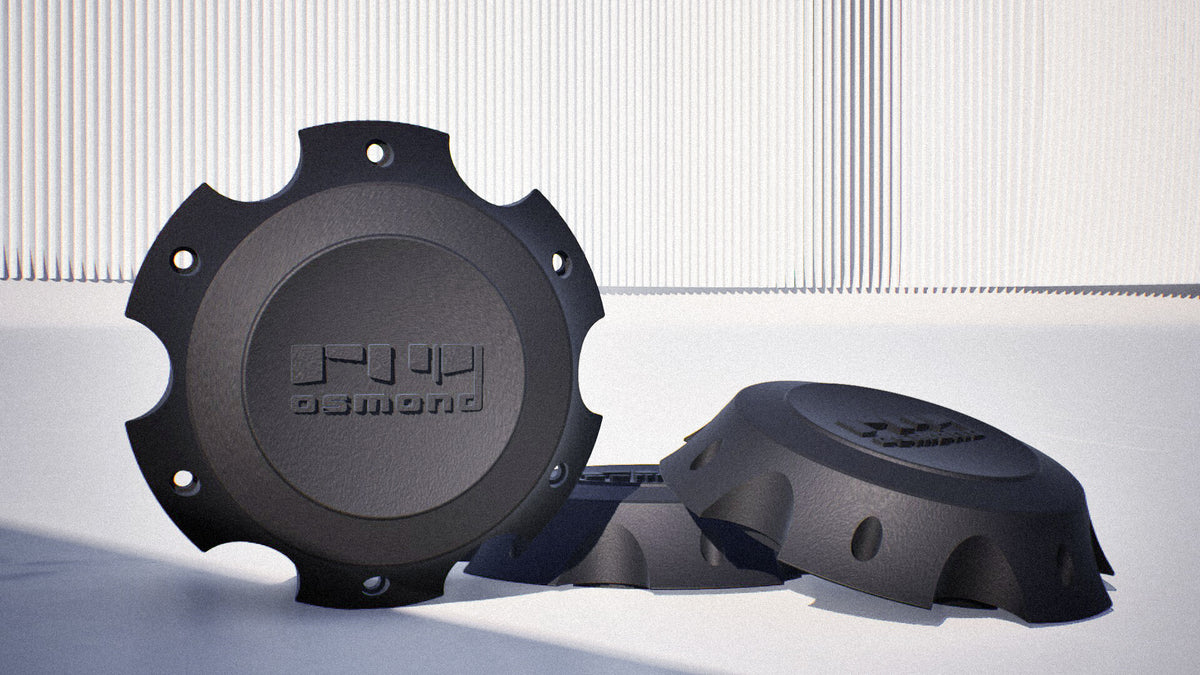

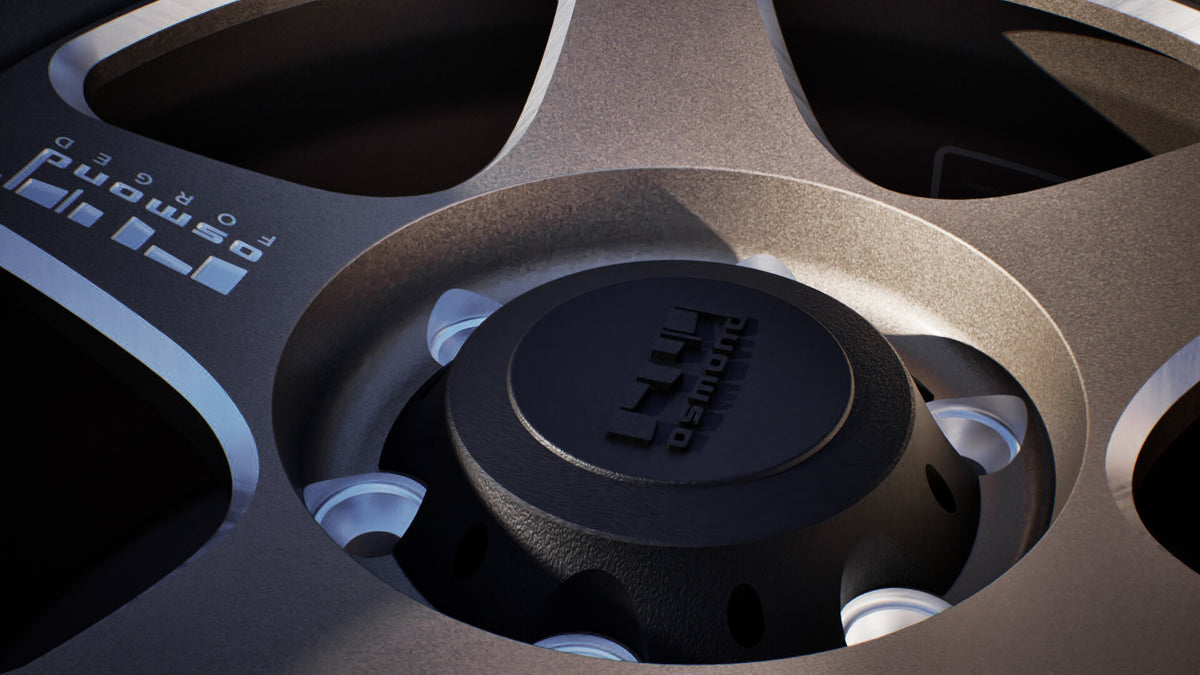

U65 Center Cap: Screw-On
Finishes the center bore on your Osmond Forged wheel. Full matte black spray with a UV-protective clear coat. Six stainless screws hold it to the wheel face. Fits U65 MAX and U65 LIGHT. Sold as a single cap. Order one per wheel.
- 6 / Stainless Screws Included
- ABS / Matte Black + UV Clear Coat
- MAX & LIGHT / Shared Fitment
Pairs well with
30-Day Hassle-Free Returns
Free Shipping when ordered with wheels
1-Year Warranty
U65 Center Cap: Screw-On
Stainless Screws Included
Matte Black + UV Clear Coat
Shared Fitment
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Fits the shared hub on U65 MAX and U65 LIGHT.
Both wheels use the same M4 screw pattern on the hub face, so one cap design covers both. Purpose-tooled for the U65's own hub profile, not an off-the-shelf cap with a logo insert. A 106mm locating spigot registers into the wheel's 106.1mm center bore, so the cap centers itself before you thread a single screw.
Screwed on, not snapped in.
A snap-in cap risks fouling on protruding axle and grease-cap hardware, common on off-road trucks like the Tacoma and 4Runner. Screw-fix avoids that. The cap extends about 20mm from the hub face, giving that hardware room. Actual clearance depends on your vehicle's hub thickness. Six M4 stainless screws, torqued to 1.0 ± 0.2 N·m.
Product details
Fitment
Fits U65 MAX and U65 LIGHT (6x139.7mm bolt pattern). Not compatible with other bolt patterns.
Specs
- Material: ABS, matte black spray finish, UV-protective clear coat
- Fasteners: 6 × M4 × 12mm stainless steel screws, black e-coated
- Torque: 1.0 ± 0.2 N·m. Do not exceed
- Tool: hex key included
- Locating feature: 106mm spigot registers into the wheel's 106.1mm center bore
- Standoff: about 20mm from the hub face to the cap's inner tip. Actual clearance to your vehicle's hardware depends on hub thickness
- Function: cosmetic, non-load-bearing

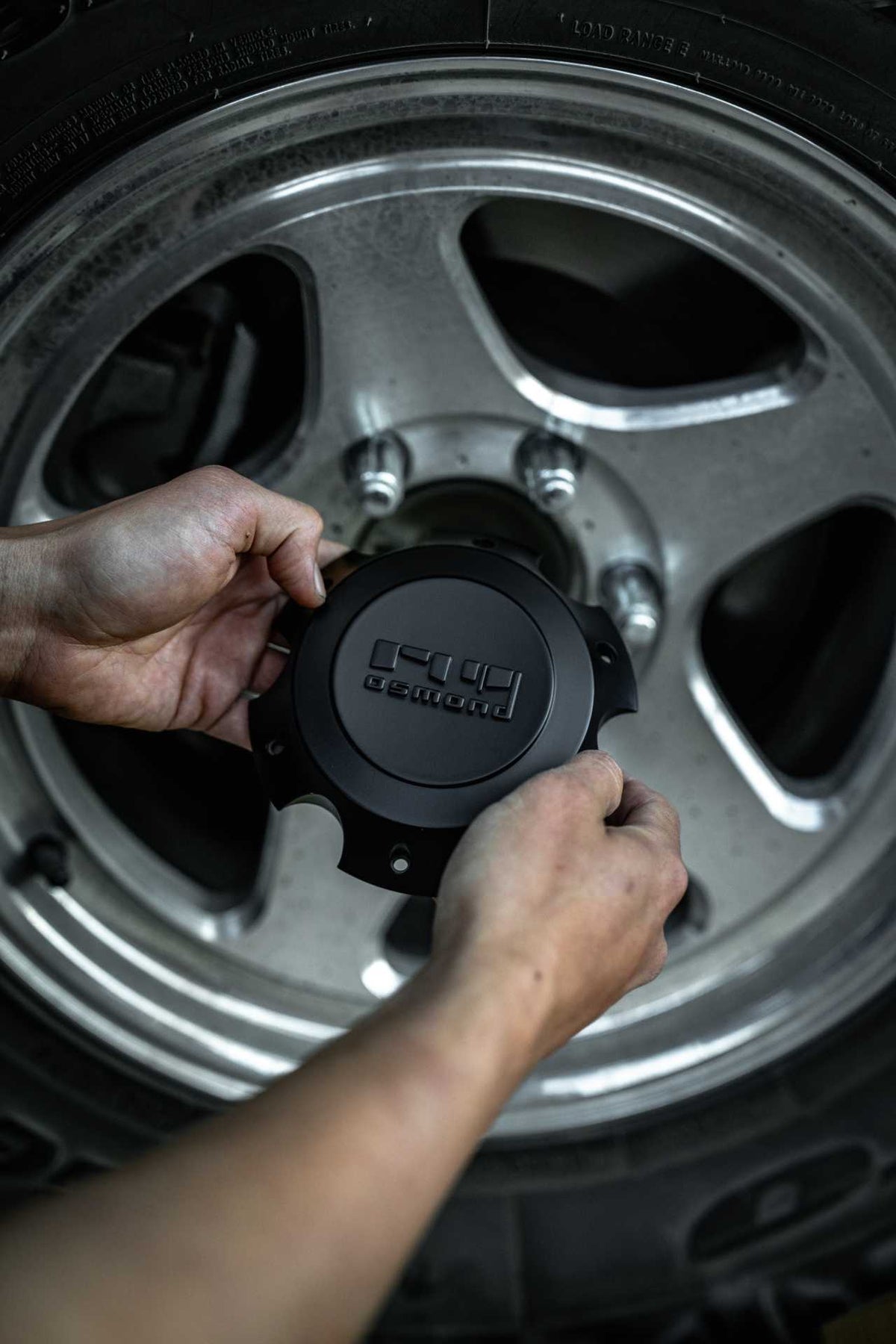

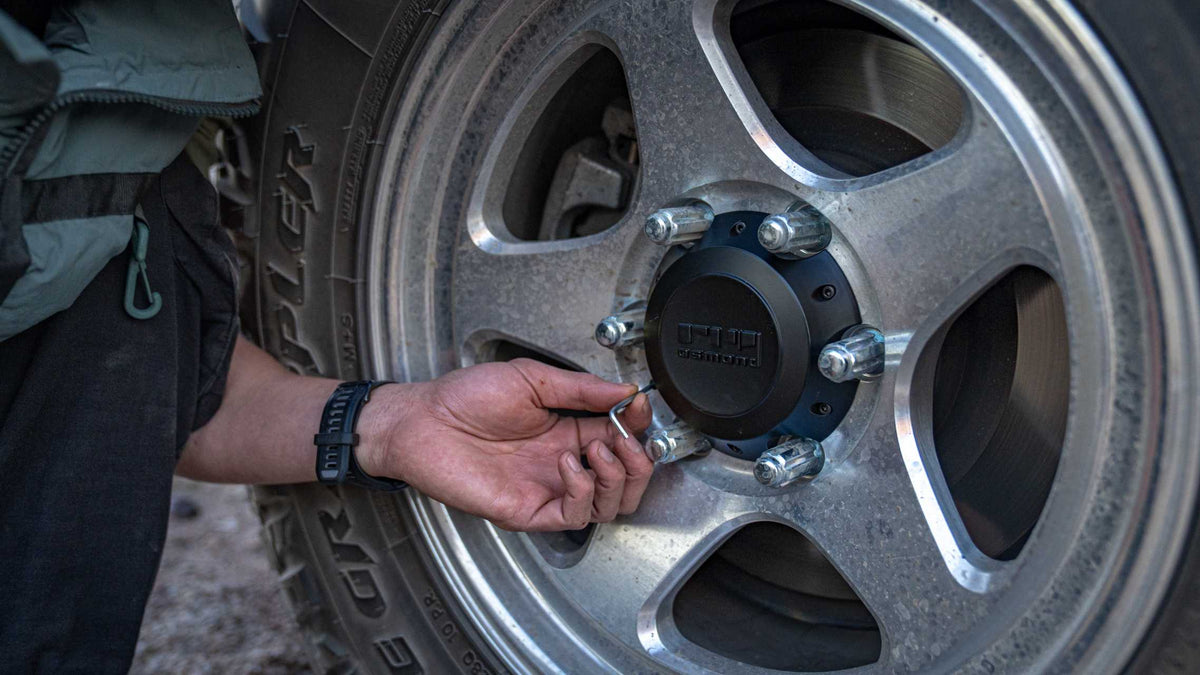

Installation
Hand-thread each screw first to avoid cross-threading, then torque to 1.0 ± 0.2 N·m. Do not exceed this figure. Overtightening can deform the plastic mounting flange.
Warranty
1-Year Warranty
Have Questions About Your Build?
Whether you need to confirm fitment, double-check offsets, or discuss technical specs, our engineering team is here to help you get it right the first time, Email us directly at hello@osmondforged.com for a response within 24 hours.
